A coin cell can power a clock circuit for years and still fail quickly in a wireless sensor. Both devices may specify 3V, but their load patterns differ greatly. The wireless product creates short current pulses, the PCB holder adds contact resistance, and the electronics may stop working well before the battery reaches its datasheet cut-off. Selecting a 3V lithium coin cell battery requires more than matching diameter and voltage. Device engineers and buyers need to define average current, pulse demand, minimum operating voltage, temperature, mounting method, user access, packaging, and target-market rules. These checks reveal when a CR2032 is a practical fit and when the device architecture needs a different power source.
A 3V Lithium Coin Cell Battery Does Not Supply Constant 3V
The 3V marking is nominal. Actual terminal voltage changes with load, remaining capacity, temperature, storage history, internal resistance, contact resistance, and recovery time after a pulse. The device sees this changing voltage, not a regulated 3.0V rail.
Primary lithium manganese dioxide coin cells, commonly written as Li/MnO2, are non-rechargeable. Never apply a charging circuit to a standard primary CR2032. If the product needs energy harvesting or external power, the circuit must prevent reverse current into the coin cell within the limits set by the approved battery specification.
Read a Lithium Battery datasheet alongside the electronics requirements. Record the lowest voltage at which the MCU, sensor, radio, display, and memory operate correctly. The highest of those thresholds can determine the usable battery capacity in the finished product.
Match Coin Cell Current, Pulse Demand, and Cut-Off Voltage
Coin-cell performance depends on the complete load waveform. A capacity value measured under a light, steady laboratory load cannot predict performance under every pulse profile. Build a device-level test around the real firmware and hardware.
Calculate the Average from Each Operating Mode
List every mode: sleep, measurement, processing, radio transmit, indicator operation, alarm, and memory write. Record current and duration for each state. Then calculate the energy used over one full operating cycle.
Small background loads matter over a long service target. Check regulator quiescent current, pull-up resistors, leakage paths, sensing dividers, and standby LEDs. A few extra microamps can significantly reduce expected operating life when the main circuit sleeps most of the time.
Test Pulse Demand as a Waveform
Wireless transmission, buzzer activation, and display updates can create short peaks. Pulse duration, interval, temperature, battery state, and contact resistance affect the voltage drop. A supplier’s maximum pulse-current figure is conditional; it is not a general current rating for any waveform.
For reference, Zenilove’s CR2032 product lists a maximum pulse current of 20mA and a maximum continuous discharge current of 3mA, both subject to stated conditions such as temperature and cut-off voltage. Use the approved datasheet to define a bench test, then repeat it in the actual device.
Set the Device Cut-Off from Functional Testing
The CR2032 capacity figure is tied to a stated test method. Zenilove’s 230mAh nominal value is measured through a 15k-ohm load to a 2.0V cut-off at 23 degrees C plus or minus 3 degrees C. A device that stops at a higher voltage, runs at a lower temperature, or draws heavier pulses will deliver a different usable result.
Log battery voltage during the highest load and after recovery. Test new cells, partly discharged cells, and samples near the cold end of the planned operating range. The product must remain stable during the pulse, not just recover afterward on an open-circuit meter.
Compare Coin Cell Size Through Device Requirements
Model numbers indicate physical size and chemistry family. A CR2032 measures about 20mm in diameter and 3.2mm in height. A CR2025 has the same nominal diameter and is thinner. The thinner format can help a shallow enclosure, while its capacity is generally lower than a comparable CR2032.
Do not approve a substitution from model number alone. Check holder geometry, contact pressure, device current, pulse behavior, temperature, expected service life, and the battery supplier’s approved specification. A holder may physically accept more than one thickness yet provide weak pressure or unreliable contact with the thinner cell.

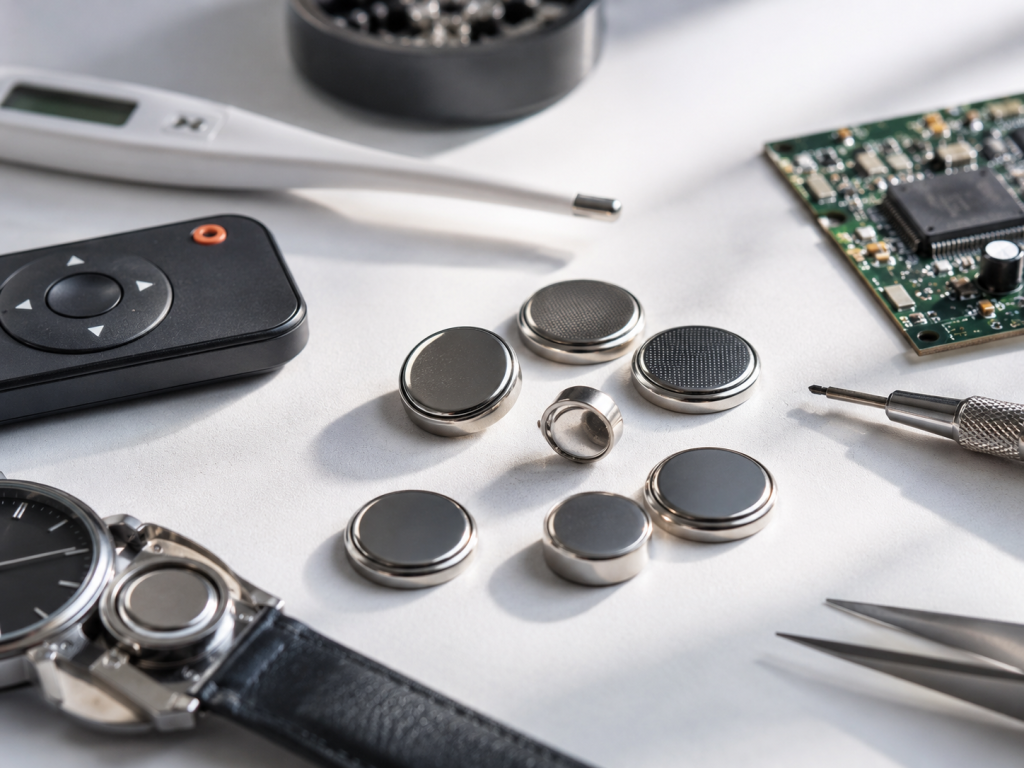

The Button Battery category includes CR2032 and CR2025 options for compact products. Select the model based on the device’s mechanical and electrical limits, then confirm it with production-intent samples.
Choose a Coin Cell Holder, Tabs, or Lead-Wire Assembly
Mechanical integration affects electrical performance and assembly reliability. Contact resistance at the holder, contamination, low spring pressure, vibration, and repeated battery replacement can create intermittent resets even when the cell meets its specification.
A Holder Supports Replacement and Service
A holder can simplify battery replacement and avoid applying soldering heat directly to the cell. The design needs correct polarity, adequate contact pressure, retention under drop or vibration, and protection against accidental short circuits. The enclosure should prevent metal tools or loose conductive parts from bridging the cell terminals.
Tabs Support Controlled PCB Assembly
Use a supplier-approved tabbed cell when you will attach the battery to a PCB by soldering or welding. Define tab material, position, length, orientation, plating, and forming dimensions on the drawing. The board process must keep heat exposure within the approved limits.
Direct soldering to a bare coin cell with uncontrolled heat can damage the seal or internal structure. A purchasing description such as “CR2032 with tabs” is incomplete because multiple tab orientations may fit different boards.
Lead Wires and Connectors Separate the Battery from the PCB
A wire-lead assembly can place the battery away from the main board or support a sealed module. Specify connector part number, pin assignment, polarity, wire length, wire type, insulation, strain relief, and exit direction. Add a polarity test and pull test to the inspection plan where the product design requires them.
Zenilove’s CR2032 Lithium Coin Cell Battery page lists options such as solder tabs, wire leads, custom connectors, holders, insulation, labels, and project-specific packaging. Record the approved configuration in a drawing and bill of materials before sample approval.
Plan Safety, Packaging, and Market Compliance Early
Coin cells create an ingestion hazard, so consumer-product design must address access, retention, warnings, and packaging. Compliance work belongs at the beginning of the enclosure and packaging process because a late change to the battery door can affect tooling, sealing, service, and appearance.
For products sold in the United States, the CPSC’s button cell and coin battery safety requirements explain federal rules under Reese’s Law. The guidance covers secured battery compartments, use-and-abuse testing, product and packaging warnings, certification, and special packaging requirements. Applicability depends on the product, manufacturing or import date, user group, and other regulatory details.
The target market may add different standards, labels, transport documents, or test reports. Provide the battery supplier with the destination countries and product category before ordering samples. The finished product manufacturer remains responsible for confirming the complete compliance path with qualified testing and regulatory support.
Safe handling also belongs in production and service instructions. Prevent short circuits during storage, keep cells away from heat and loose conductive parts, control polarity, and prohibit charging primary cells. Define how to isolate and dispose of rejected or depleted batteries under local requirements.
Build an OEM Sample Test Around the Finished Device
A supplier report cannot replace device-level validation. The battery interacts with the holder, PCB, firmware, radio settings, enclosure, and user behavior. Test the full assembly with the production-intent battery configuration.
| Check | Evidence to Collect Before Approval |
|---|---|
| Electrical load | Current and duration for sleep, sensing, processing, transmission, display, alarm, and fault states |
| Voltage limit | Minimum functional voltage for every subsystem and voltage during the worst pulse |
| Runtime | Test method, operating cycle, temperature, sample count, and end-of-life definition |
| Mechanics | Diameter, thickness, holder pressure, retention, polarity, tab or wire drawing, and enclosure clearance |
| Environment | Performance at expected low and high temperatures plus relevant vibration, drop, and humidity conditions |
| Safety | Short-circuit prevention, battery access, compartment security, warnings, and handling instructions |
| Supply | Approved manufacturer, lot traceability, date code, storage conditions, packaging, and change-control process |
| Compliance | Destination market, required standard, test reports, certificates, labels, and responsible party |
Run pulse tests with new and partly discharged cells. Repeat critical checks after storage and environmental exposure. Compare several production-representative samples, because one laboratory cell cannot show normal unit-to-unit variation or assembly tolerance.
For a project that needs a custom terminal, holder, connector, packaging method, or validation plan, Custom Battery Solutions should begin with the device waveform, drawing, service-life target, target markets, and annual quantity. These inputs make the sample specification measurable.
A 3V Lithium Coin Cell Battery Fits Low-Drain, Controlled Loads
A 3V lithium coin cell battery suits a low-drain device when pulse demand stays within approved test conditions, the electronics tolerate voltage decline, and the holder or terminal design maintains reliable contact. Temperature, cut-off voltage, user access, packaging, and market rules must also fit the project.
Approve the battery only after the finished device passes its worst pulse, cold-condition, runtime, retention, and safety checks. If the load causes repeated voltage collapse or the service target requires capacity the available space cannot support, revise the operating cycle or choose a different power architecture before production.
